Compact guide cylinder GH10-20

Manufacturer	HITOP
Description	Compact slider cylinder GH 10x5
Part number	GH 10x5

CAD-modeller

Forespørgsel om pris

Valg af produkter

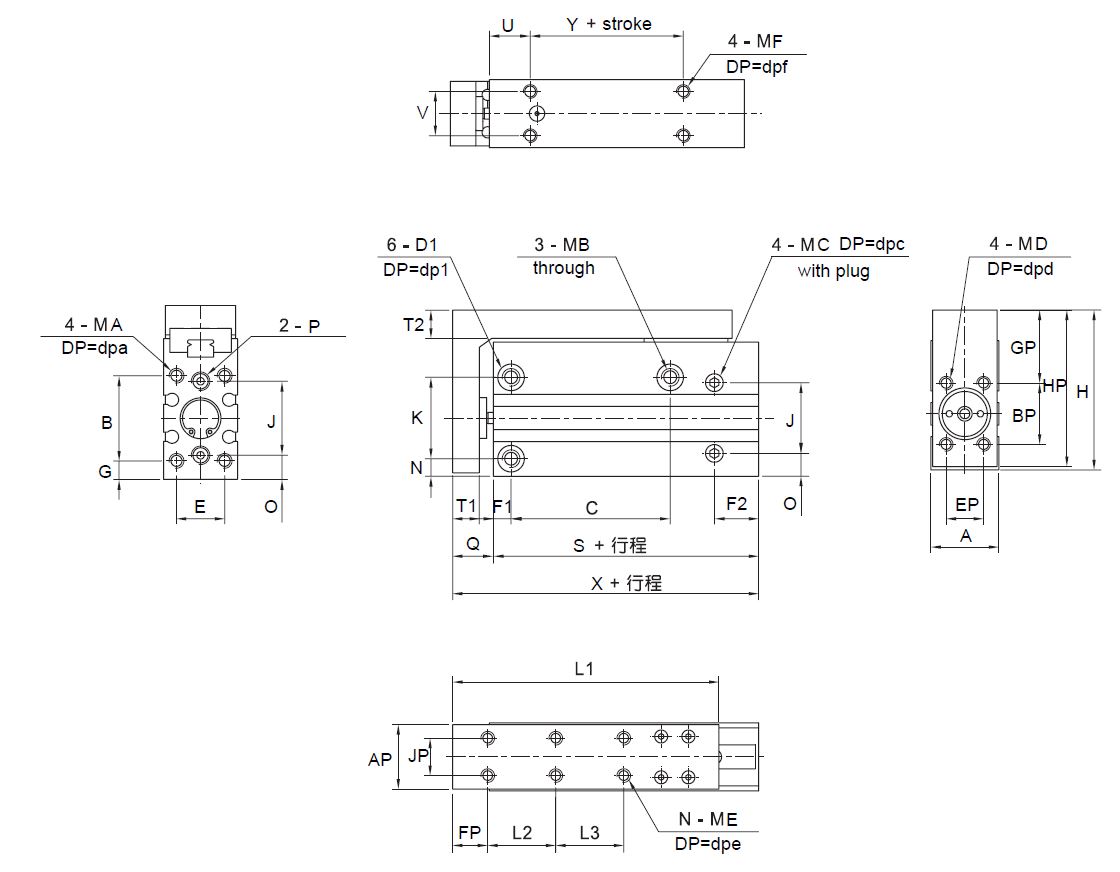

Index	Selector	Bore	A (mm)	AP (mm)	B (mm)	BP (mm)	D1 (mm)	dp1 (mm)	dpa (mm)	(mm)	(mm)	(mm)	(mm)	E (mm)	EP (mm)	F1 (mm)	F2 (mm)	FP (mm)	G (mm)	GP (mm)	H (mm)	HP (mm)	J (mm)	JP (mm)	K (mm)	O (mm)	P	Q	S	T1	T2	U	V	X (mm)	Y (mm)	N1 (mm)	MA	MB	MC	MD	ME	MF
1	1	10	20	19	23	18	7.5	4.4	6	4	7.5	8	6	13	11	5	12.5	11	5	21.5	47	46	20	11	23	6.5	M5x0.8	11.5	35	7.5	8	12	13	46.5	5	5	M4x0.7	M5x0.8	M5x0.8	M4x0.7	M4x0.7	M4x0.7
2	2	16	25	24	27	26	7.5	4.4	6	4	10	9	6	17	16	5	12.5	14	5.5	21.5	53.5	52.5	25	16	27	6.5	M5x0.8	14	42	10	9	12	17	56	10	5.5	M4x0.7	M5x0.8	M5x0.8	M4x0.7	M4x0.7	M4x0.7
3	3	20	32	31	34	34	9.3	8	8	4	11	9.5	8	20	20	6	15	14	6	24.5	64.5	63.5	32	20	34	7	M5x0.8	15.5	52.5	11	9.5	15	20	68	10	6	M5x0.8	M6x1.0	M5x0.8	M5x0.8	M5x0.8	M5x0.8

stroke (mm)

Index	Selector	C (mm)	L1 (mm)	L2 (mm)	N (mm)	L3
1	19	14	49	10	4	-
