DESCLICK

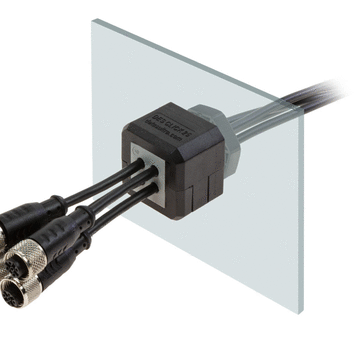

DESCLICK is a divisible cable gland with metric threads.

Manufacturer	DetasUltra
Description	DESCLICK 20B
Manufacturer Part Number	1731051020
Color	Black
Cut-out [mm]	Ø 20.5

Material	PC
Flammability	self-extinguishing according to UL94-V0
Temperature	-40°C... +130°C (static)
Features	halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157

CAD-modeller

Forespørgsel om pris

Valg af produkter

Index	Selector	Manufacturer Part Number	Description	Color	Cut-out [mm]
1	1	1731051020	DESCLICK 20B	Black	Ø 20.5
2	2	1731051025	DESCLICK 25B	Black	Ø 25.5
3	3	1731051032	DESCLICK 32B	Black	Ø 32.5
4	4	1731051320	DESCLICK 20G	Grey	Ø 20.5
5	5	1731051325	DESCLICK 25G	Grey	Ø 25.5
6	6	1731051332	DESCLICK 32G	Grey	Ø 32.5

Produktbeskrivelse

Divisible cable glands
Divisible cable gland with metric threads. Snap closure.

DESCLICK can be equipped with small and multiple grommet holders for cables from 2 to 17 mm in diameter.

A locknut M32 for SUB D9 is available on request (code 1731052032).

Dokumentation

Catalog page

Instructions (.pdf)

Data sheet (.pdf)

Kontakt leverandøren

DetasUltra

Divisible cable entry system frames and cable gland plates that allow to route cables with and without connectors through the electrical cabinets frames.
