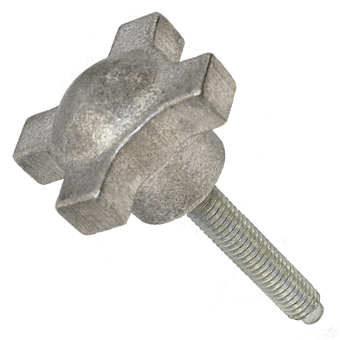

Hand Knob Assemblies, Inch

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane Manufacturing
Description	Hand Knob Assemblies, Inch
Manufacturer Part Number	CL-1-HK2T
Material	Aluminum

CAD modely

Požadavek cenové nabídky

Výběr produktu

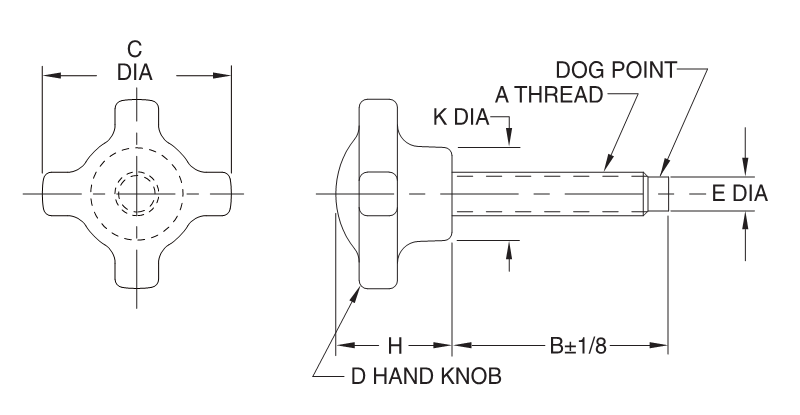

Index	Selector	Manufacturer Part Number	Description	Base Part Number	Option	Material	A THREAD	B (Inch)	C DIA (Inch)	D	E DIA (Inch)	H (Inch)	K DIA (Inch)	Measurement
1	1	CL-1-HK2T	Hand Knob Assemblies, Inch	CL-1-HK2T		Aluminum	1/4-20	1	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
2	12	CL-1-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-1-HK2T	Without Thread	Aluminum	1/4-20	1	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
3	23	CL-2-HK2T	Hand Knob Assemblies, Inch	CL-2-HK2T		Aluminum	1/4-20	1-1/2	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
4	34	CL-2-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-2-HK2T	Without Thread	Aluminum	1/4-20	1-1/2	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
5	38	CL-2A-HK2T	Hand Knob Assemblies, Inch	CL-2A-HK2T		Aluminum	1/4-20	2	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
6	39	CL-2A-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-2A-HK2T	Without Thread	Aluminum	1/4-20	2	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
7	40	CL-2B-HK2T	Hand Knob Assemblies, Inch	CL-2B-HK2T		Aluminum	1/4-20	3	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
8	41	CL-2B-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-2B-HK2T	Without Thread	Aluminum	1/4-20	3	1-3/4	CL-25-HK-2A	.15	1-1/8	3/4	Inch
9	42	CL-3A-HK2T	Hand Knob Assemblies, Inch	CL-3A-HK2T		Aluminum	5/16-18	1	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
10	2	CL-3A-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-3A-HK2T	Without Thread	Aluminum	5/16-18	1	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
11	3	CL-3-HK2T	Hand Knob Assemblies, Inch	CL-3-HK2T		Aluminum	5/16-18	1-3/4	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
12	4	CL-3-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-3-HK2T	Without Thread	Aluminum	5/16-18	1-3/4	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
13	5	CL-4-HK2T	Hand Knob Assemblies, Inch	CL-4-HK2T		Aluminum	5/16-18	2-1/2	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
14	6	CL-4-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-4-HK2T	Without Thread	Aluminum	5/16-18	2-1/2	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
15	7	CL-4A-HK2T	Hand Knob Assemblies, Inch	CL-4A-HK2T		Aluminum	5/16-18	3	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
16	8	CL-4A-HK2T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-4A-HK2T	Without Thread	Aluminum	5/16-18	3	1-3/4	CL-25-HK-2A	.20	1-1/8	3/4	Inch
17	9	CL-5A-HK4T	Hand Knob Assemblies, Inch	CL-5A-HK4T		Aluminum	3/8-16	1	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
18	10	CL-5A-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-5A-HK4T	Without Thread	Aluminum	3/8-16	1	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
19	11	CL-5B-HK4T	Hand Knob Assemblies, Inch	CL-5B-HK4T		Aluminum	3/8-16	1-1/2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
20	13	CL-5B-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-5B-HK4T	Without Thread	Aluminum	3/8-16	1-1/2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
21	14	CL-5-HK4T	Hand Knob Assemblies, Inch	CL-5-HK4T		Aluminum	3/8-16	2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
22	15	CL-5-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-5-HK4T	Without Thread	Aluminum	3/8-16	2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
23	16	CL-6-HK4T	Hand Knob Assemblies, Inch	CL-6-HK4T		Aluminum	3/8-16	2-1/2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
24	17	CL-6-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-6-HK4T	Without Thread	Aluminum	3/8-16	2-1/2	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
25	18	CL-6A-HK4T	Hand Knob Assemblies, Inch	CL-6A-HK4T		Aluminum	3/8-16	3	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
26	19	CL-6A-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-6A-HK4T	Without Thread	Aluminum	3/8-16	3	2-1/8	CL-45-HK-4A	.25	1-3/8	1	Inch
27	20	CL-7A-HK4T	Hand Knob Assemblies, Inch	CL-7A-HK4T		Aluminum	1/2-13	1	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
28	21	CL-7A-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-7A-HK4T	Without Thread	Aluminum	1/2-13	1	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
29	22	CL-7B-HK4T	Hand Knob Assemblies, Inch	CL-7B-HK4T		Aluminum	1/2-13	1-1/2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
30	24	CL-7B-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-7B-HK4T	Without Thread	Aluminum	1/2-13	1-1/2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
31	25	CL-7C-HK4T	Hand Knob Assemblies, Inch	CL-7C-HK4T		Aluminum	1/2-13	2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
32	26	CL-7C-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-7C-HK4T	Without Thread	Aluminum	1/2-13	2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
33	27	CL-7-HK4T	Hand Knob Assemblies, Inch	CL-7-HK4T		Aluminum	1/2-13	2-1/2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
34	28	CL-7-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-7-HK4T	Without Thread	Aluminum	1/2-13	2-1/2	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
35	29	CL-8-HK4T	Hand Knob Assemblies, Inch	CL-8-HK4T		Aluminum	1/2-13	3	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
36	30	CL-8-HK4T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-8-HK4T	Without Thread	Aluminum	1/2-13	3	2-1/8	CL-45-HK-4A	.34	1-3/8	1	Inch
37	31	CL-9-HK6T	Hand Knob Assemblies, Inch	CL-9-HK6T		Aluminum	5/8-11	1-3/4	2-3/4	CL-65-HK-6A	.46	1-1/2	1-3/8	Inch
38	32	CL-9-HK6T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-9-HK6T	Without Thread	Aluminum	5/8-11	1-3/4	2-3/4	CL-65-HK-6A	.46	1-1/2	1-3/8	Inch
39	33	CL-10-HK6T	Hand Knob Assemblies, Inch	CL-10-HK6T		Aluminum	5/8-11	3	2-3/4	CL-65-HK-6A	.46	1-1/2	1-3/8	Inch
40	35	CL-10-HK6T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-10-HK6T	Without Thread	Aluminum	5/8-11	3	2-3/4	CL-65-HK-6A	.46	1-1/2	1-3/8	Inch
41	36	CL-12-HK6T	Hand Knob Assemblies, Inch	CL-12-HK6T		Aluminum	3/4-10	3	2-3/4	CL-65-HK-6A	.56	1-1/2	1-3/8	Inch
42	37	CL-12-HK6T-NOTHREAD	Hand Knob Assemblies, Without Thread, Inch	CL-12-HK6T	Without Thread	Aluminum	3/4-10	3	2-3/4	CL-65-HK-6A	.56	1-1/2	1-3/8	Inch

Popis produktu

Classic, easy-to-grip knob with an integral steel clamping screw. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Choice of three knob sizes. Available in thread sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), most in a choice of several thread lengths. Made in USA.
