TR1671 Blind Threaded Insert - Mini - Inch

Manufacturer	Teknipart
Description	TR1671 Blind Threaded Insert - Mini - Inch, TR1671.84290
Order No.	TR1671.84290
Distributor	Wixroyd Group Ltd

Modelos CAD

Solicitação de cotação

Seleção de produtos

Index	CAD	Selector	Order No.	Description	Order No.	Type	d<sub>1</sub><linebreak>tol. 3B	Thread type d<sub>1</sub>	d<sub>2</sub><linebreak>tol. 2A	Thread type d<sub>2</sub>	l<sub>1</sub>	l<sub>2</sub>	l<sub>3</sub><linebreak>±0.030	l<sub>4</sub> c'bore depth	l<sub>5</sub>	Inst. c'sink hole size<linebreak>+0.010\|-0.000	Inst. tap drill size	Inst. thread tap depth<linebreak>min.	Inst. thread tap size<linebreak>class 2B	Inst. tool ref. TR1700	Removal drill size	Removal drill depth
1	Nenhum CAD disponível	1	TR1671.84290	TR1671 Blind Threaded Insert - Mini - Inch, TR1671.84290	TR1671.84290	SL	2-56	UNC	,166	UNC	,24	,18	,10	C'Sink	,13	,166	,134	,24	8-32	.0830	#33	1/16
2	Nenhum CAD disponível	2	TR1671.84291	TR1671 Blind Threaded Insert - Mini - Inch, TR1671.84291	TR1671.84291	SL	4-40	UNC	,194	UNF	,31	,22	,12	C'Sink	,17	,194	,161	,28	10-32	.0840	#29	3/32
3	Nenhum CAD disponível	3	TR1671.84292	TR1671 Blind Threaded Insert - Mini - Inch, TR1671.84292	TR1671.84292	SL	6-32	UNC	,220	UNF	,39	,22	,12	C'Sink	,21	,220	,187	,28	12-28	.0850	#21	3/32
4	Nenhum CAD disponível	4	TR1671.84294	TR1671 Blind Threaded Insert - Mini - Inch, TR1671.84294	TR1671.84294	SL	8-32	UNC	,255	UNF	,43	,24	,13	C'Sink	,25	,255	,228	,30	1/4-28	.0860	#8	3/32

Descrições do Produto

Inserts - A303 CRES.Keys - 302 CRES.Passivated. Dry film lubrication on self-locking inserts only.

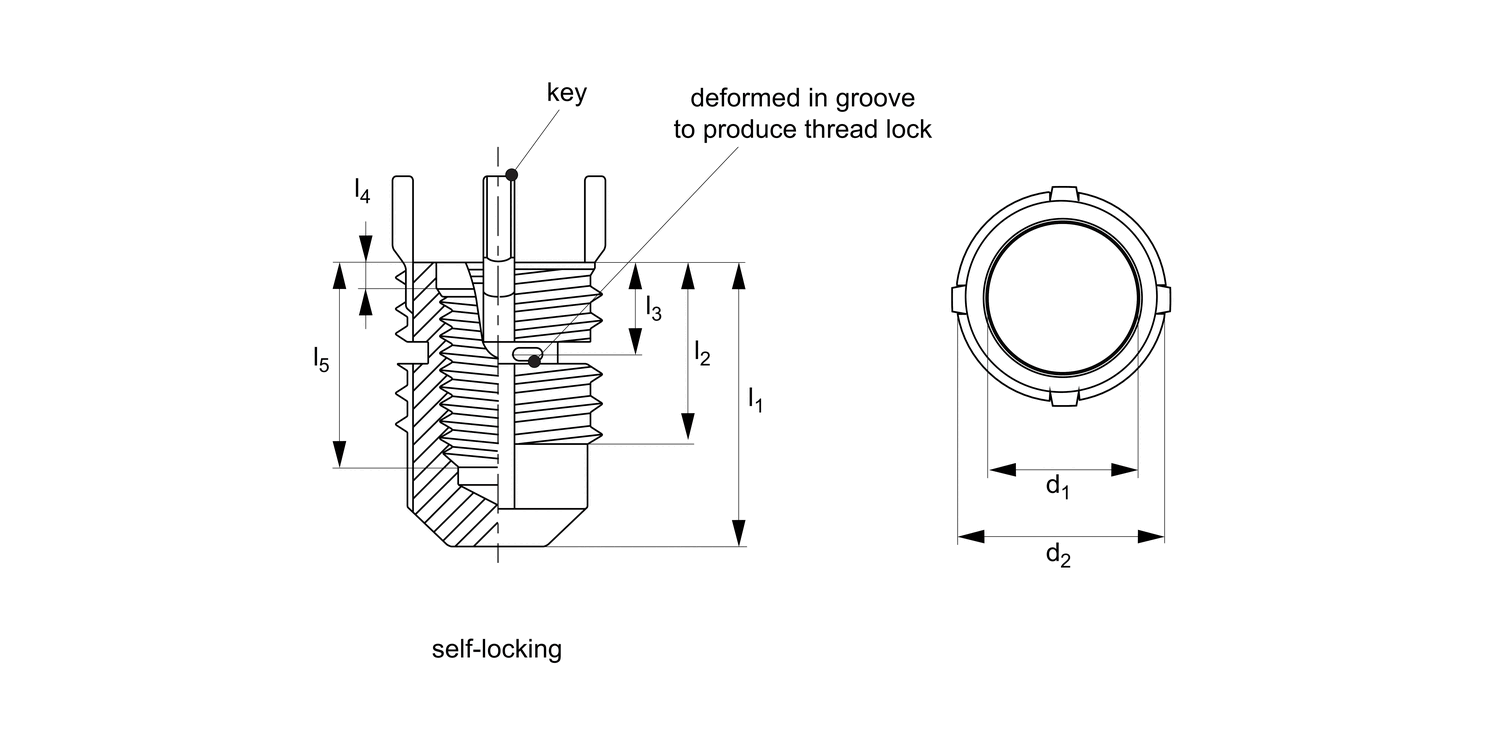

All dimensions in inches.Internal threads: to SAE AS8879.General tolerances -+/- 0,010 unless specified.Tap drill hole tolerances -0,234 to 0,500 = +0,004/-0,0010,500 and over = +0,005/-0,001SL = Self-Locking type, deliberate deformity in thread produces self-affect once installed (see technical diagram).

"Order installation tool separately, as identified by ""Inst. Tool ref."" in table."

Four locking keys on internal threads 5/16 and over. Two locking keys on internal threads smaller than 5/16.Installation (Inst.) drill size, counter sink, thread tap and thread depth as specified in table.Removal (Rem.) drill size and drill depth as specified in table.Perform to standards: MIL-I-45914A
